Brochures & specifications

Manufacturer documentation, straight from the source.

The full brochures and specification sheets for the ranges we install — capacities, energy ratings, noise levels and dimensions. Free to open, no email address required.

This is a selection, not everything we can supply. If the brand or range you're after isn't here, ask us — we have access to most major manufacturers and can get you the documentation and a price.

Samsung

Every Samsung range below has built-in Wi-Fi as standard.

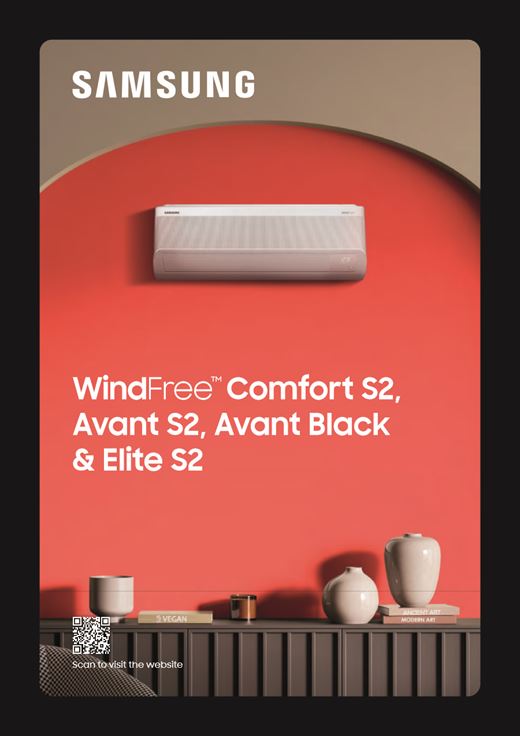

Samsung WindFree™ S2 range

The current 2025 line-up — WindFree™ Elite S2, Avant S2, Avant Black and Comfort S2. The most comprehensive of the three, including the multi-split compatibility guide for multi-room systems.

A++ to A+++2.0–6.5 kWFrom 16 dB(A)Built-in Wi-FiR32
  • WindFree™ cooling through 23,000 micro air holes — cools the room without a cold draught
  • Elite S2 rated A+++ for both cooling and heating (SEER 9.5 / SCOP 5.1)
  • Avant S2 and Avant Black run as low as 16 dB(A) on their quietest setting
  • Rated for heating down to −15°C outside
  • Wi-Fi control via SmartThings, Tri-Care filter, Freeze Wash and the SolarCell remote
Open PDF 12 pages · 1.4 MB

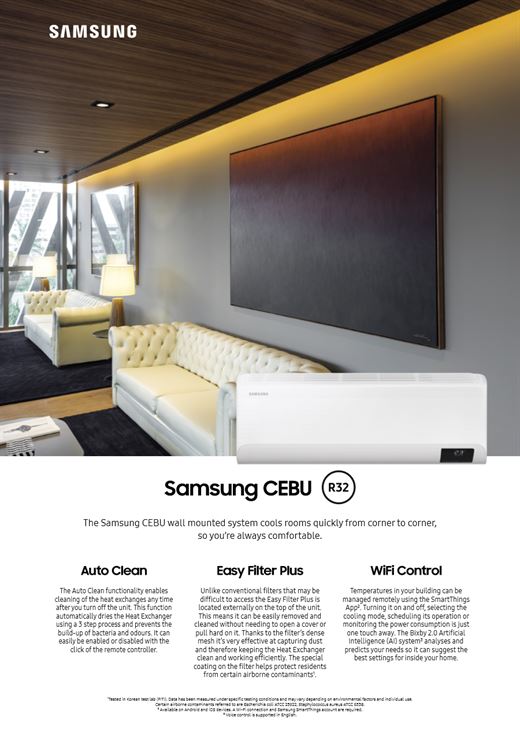

Samsung Cebu

A well-specified wall-mounted range at a sensible price, with Wi-Fi control included as standard. Two-page product information sheet with the full specification table.

A++ / A+2.5–6.0 kWFrom 19 dB(A)Built-in Wi-FiR32
  • Four sizes — 2.5, 3.5, 5.0 and 6.0 kW cooling (3.2–7.4 kW heating)
  • SEER up to 6.7 (A++) and SCOP 4.0 (A+)
  • Down to 19 dB(A) indoors on the quiet setting
  • Wi-Fi control with Samsung SmartThings and Bixby voice control
  • Auto Clean and Easy Filter Plus to keep maintenance simple
Open PDF 2 pages · 411 KB

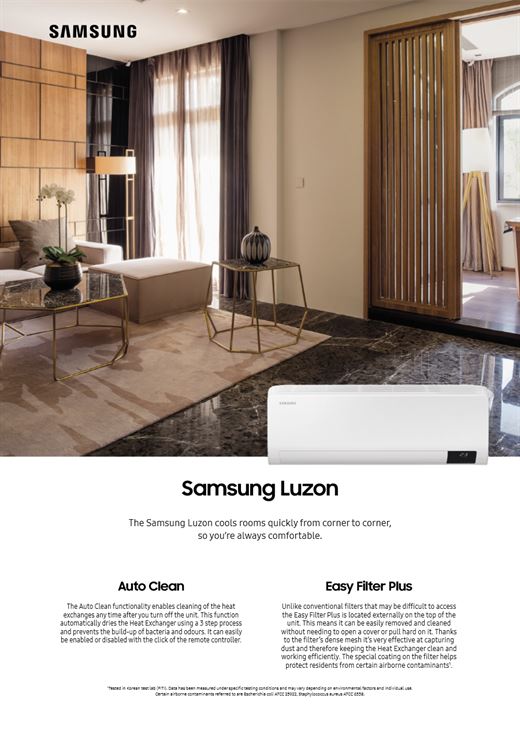

Samsung Luzon

A straightforward, cost-effective wall-mounted range built on the same core Samsung engineering — and the range from which built-in Wi-Fi became standard across the Samsung line-up. Two-page product information sheet with the full specification table.

A++ / A+2.5–6.5 kWFrom 19 dB(A)Built-in Wi-FiR32
  • Four sizes — 2.5, 3.5, 5.0 and 6.5 kW cooling (3.2–7.4 kW heating)
  • SEER up to 6.7 (A++) and SCOP 4.0 (A+)
  • Down to 19 dB(A) indoors on the quiet setting
  • Built-in Wi-Fi — control it from your phone with Samsung SmartThings
  • Digital Inverter Boost compressor, Auto Clean and Easy Filter Plus
Open PDF 2 pages · 480 KB

Mitsubishi Electric

The M Series and Mr Slim ranges, plus the MXZ-F multi-split outdoor units.

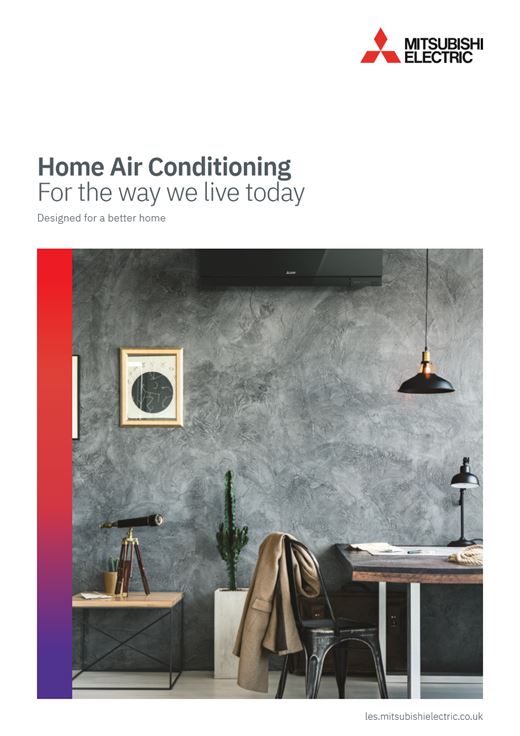

Home Air Conditioning — the full range

Mitsubishi Electric's complete residential brochure, and the best place to start if you're weighing up options. Covers the wall-mounted ranges, air quality technology, running costs and controls in plain English.

24 pagesWhole rangePlain EnglishR32
  • The full home line-up in one document — designer, elegance and multi-room systems
  • How the air purification and filtration technology actually works
  • Wi-Fi control and scheduling through the MELCloud app
  • Written for homeowners rather than engineers — the least technical of the four
Open PDF 24 pages · 6.3 MB

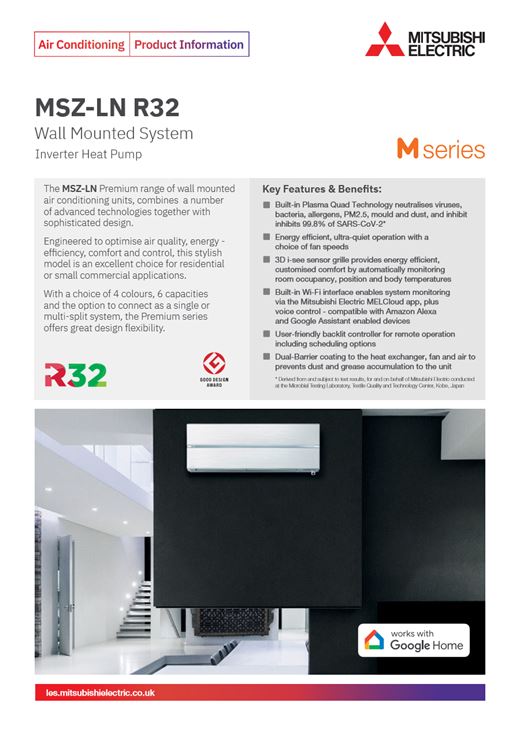

MSZ-LN Designer range

Mitsubishi's premium wall unit, and the one to look at if you'd rather the air conditioning didn't look like air conditioning. Four finishes: Ruby Red, Onyx Black, Pearl White and Natural White.

Up to A+++ / A+++1.8–6.1 kWFrom 19 dB(A)4 finishesR32
  • Five sizes from 1.8 to 6.1 kW cooling (2.0–6.8 kW heating)
  • A+++ for both heating and cooling on the 2.5 and 3.5 kW models
  • Down to 19 dB(A) — among the quietest units made
  • Plasma Quad Plus filtration, tackling viruses, bacteria, allergens, PM2.5, mould and dust
  • 3D i-see sensor and Wi-Fi control via MELCloud, Amazon Alexa and Google Assistant
Open PDF 2 pages · 534 KB

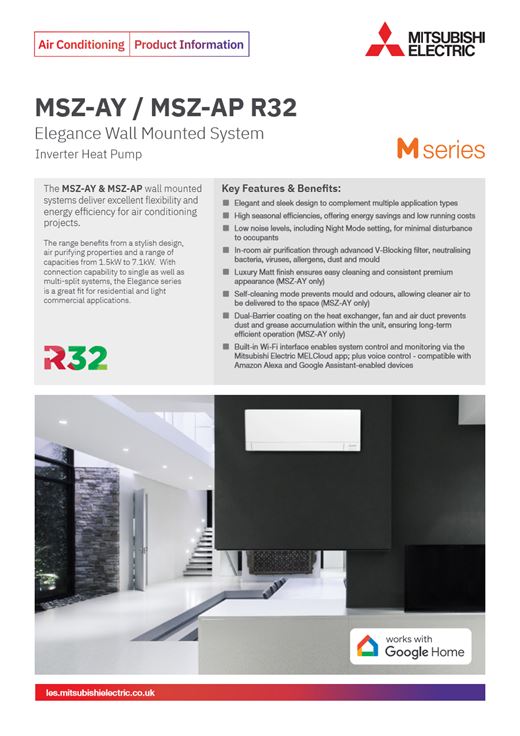

MSZ-AY / MSZ-AP Elegance range

The M Series workhorse — the range we fit most often in homes. Understated, efficient and available in the widest spread of sizes, so there's a model for almost any room.

Up to A++ / A+++1.5–7.1 kWFrom 18 dB(A)R32
  • Eight sizes from 1.5 to 7.1 kW cooling (2.0–8.0 kW heating)
  • A+++ for cooling across most of the range
  • Down to 18 dB(A) indoors, with a Night Mode that quietens it further
  • V-Blocking filter and a luxury matt finish on the MSZ-AY models
  • Self-cleaning mode and Dual Barrier coating to keep mould and odours at bay
Open PDF 2 pages · 1.0 MB

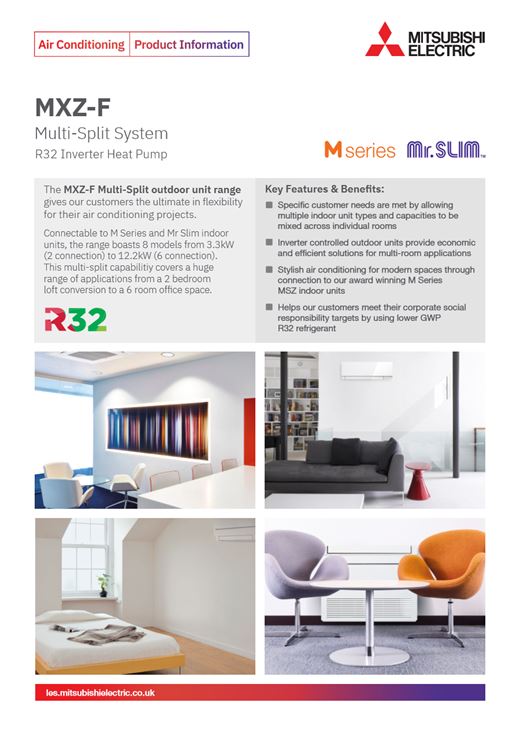

MXZ-F Multi-Split outdoor units

One outdoor unit, up to six rooms. This is the sheet to look at if you want several rooms done without a condenser on the wall for each one — the tidiest way to cover a whole house.

2–6 rooms3.3–12.2 kW8 modelsR32
  • Eight outdoor units, from 3.3 kW (two rooms) to 12.2 kW (six rooms)
  • Mix indoor unit types and sizes across rooms on the same system
  • Connects to both M Series and Mr Slim indoor units
  • Suits anything from a two-bedroom loft conversion to a six-room office
Open PDF 2 pages · 1.5 MB

Hitachi

The airHome single-split wall-mounted ranges.

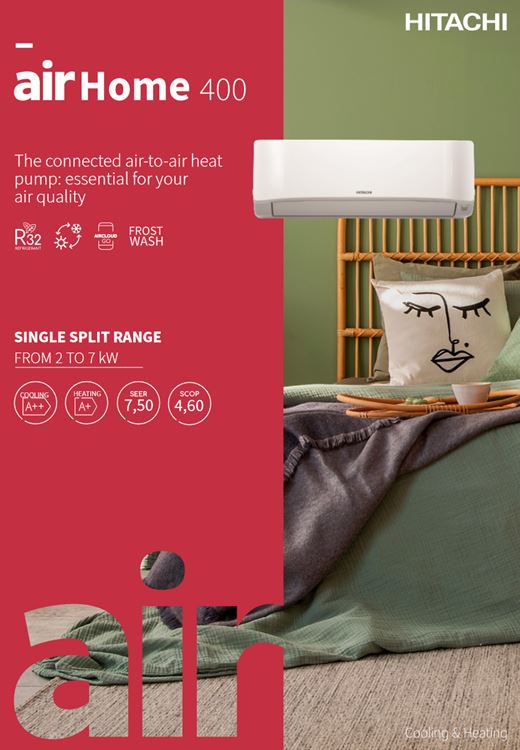

Hitachi airHome 400

The connected airHome, and the one to choose if air quality matters to you. Adds Frost Wash self-cleaning and app control over the 200, across a wider range of sizes.

A++ / A+2–7 kWFrom 20 dB(A)Frost WashR32
  • Single-split wall-mounted range from 2 to 7 kW
  • SEER 7.50 and SCOP 4.60 — A++ cooling, A+ heating
  • From 20 dB(A) indoors, quieter than a whisper in a still room
  • Frost Wash, anti-virus filter and Mold Guard for cleaner air
  • Wi-Fi control through the airCloud Go app, with Alexa and Google Home
Open PDF 4 pages · 1.7 MB

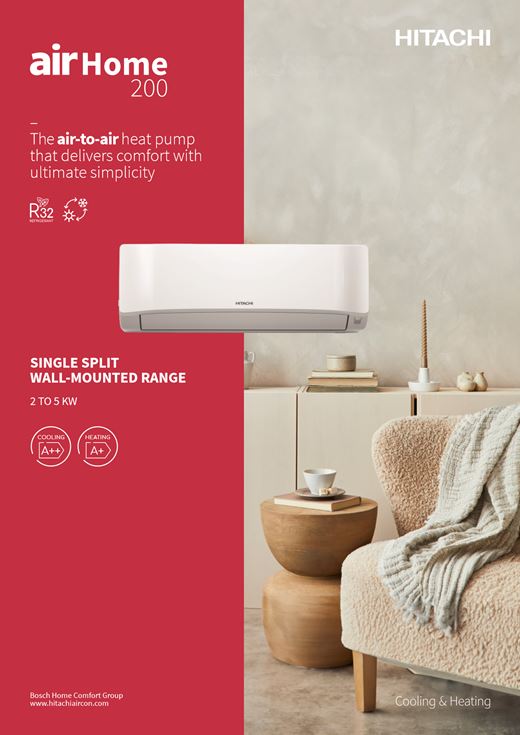

Hitachi airHome 200

Hitachi's straightforward option — the same build quality without the connected features, at a lower price. A sensible choice for a single room where app control isn't the point.

A++ / A+2–5 kWCompactR32
  • Single-split wall-mounted range from 2 to 5 kW
  • A++ cooling and A+ heating across the range
  • Ultra-compact casing, designed to sit discreetly in a room
  • Simple backlit remote, with app control available as an option
Open PDF 4 pages · 2.1 MB

A note on the figures

These are the manufacturers' own documents, reproduced as published. Manufacturers revise specifications from time to time, and the quoted capacities, efficiencies and noise levels are measured under laboratory test conditions — real-world performance depends on the room, the install and how you run it.

We'll confirm the exact model and the right size for your space at your free survey. We also fit Fujitsu — just ask and we'll send you the relevant documentation.
